12″ – 36″ Stackable Plastic Pipe Stand

Proline Pipe Equipment Inc. invented the Plastic Pipe Stand over 25 years ago. Proline’s 12″ – 36″ stackable plastic pipe stand is the current “Superman” of the industry.  When designing this stand, Proline engineers gave it a “star” shape and that contributes to its strength.  Others have copied that design and followed suit.  These stands were tested on a third party press until they failed due to extreme pressure.  Increments of 5,000 lbs. (2,268 kg.) were applied.

When the weight reached 65,000 lbs. (29,480 kg.) there was no change in the stand.  So we went to 70,000 lbs.  At 75,000 lbs.  we saw a slight wave but the stand endured. So we went to 80,000 lbs. and more waves appeared.  We went to 90,000 and crushed the stand.   After 5 minutes, with the weight removed, the stand took back its shape.  That surprised us, so we decided to try weight on the damaged stand to see when it would fail.  We made it up to 65,000 lbs. on the damaged stand, before the waves returned.

We didn’t just test 1 stand.  We tested multiple stands and the results were the same.  We took the results of the tests and rated this stand with a 5:1 safe working load capacity.  Safety is our highest priority and Proline’s plastic pipe stands reflect that commitment. After the tests, we rated this pipe stand at 13,000 lbs. (5,897 kg.). What’s even better,  it sells for the same price as the 12-24″ stand it replaces.

For hotter environments, we have also created a pipe stand that can be used in ambient heat where temperatures can exceed 98 degrees F or 37 degrees C.  They have been used in Australia, Africa and warmer climates worldwide. They have more resin for added stability and are coloured white to repel the heat.

P/N: PIPESTAND1236


Contact Order Desk

Stackable Plastic Pipe Stand Features: 15/pallet

  • Pipe Range: 12″ – 36″
  • each stand has a safe working load of 13,000 lbs. (5,897 kg.) under ideal conditions
  • stackable for easy transporting
  • easy storage with 15 on a pallet
  • light weight
  • environmentally friendly (can be reused and recycled)
  • Made of UV stabilized HDPE
  • average lifespan of 6.5 years
  • each stand comes with a date stamp indicating time of manufacture
  • keeps jobsite clean and clutter-free
  • No need for procedures to eliminate bugs or fungus
  • quick set up & collection time
  • Invented by Proline
  • Made in Canada
  • Shipped locally and worldwide
  • Approx. Full Pallet size: 48″ x 42″ x 72″ H
  • Approx. Full Pallet size: 122 cm x 107 x 183 H
  • Approx. Full Pallet weight: 690 lbs. (313 kg)

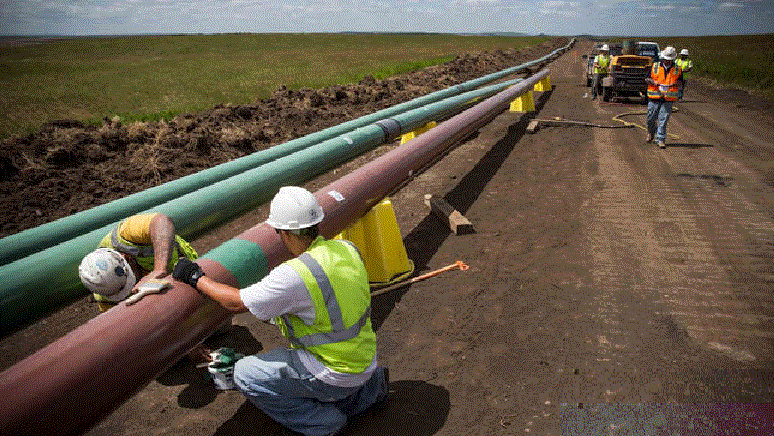

12″-36″ pipe stands on the job

Additional Options:

  • can be made in one company colour if required (minimum quantities apply)
  • can be stamped or engraved with company name or logo (minimum quantities apply)
  • discounts available when 100, 500, 1000 are ordered and shipped together

Ambient temperature up to 37C (98F)

When ambient temperature exceeds 37C (98F)

**DO NOT USE PIPE LARGER THAN 36″ ON THESE PIPESTANDS**

  • quick set up time
  • quick collection time
  • easy storage with 15 on a pallet
  • light weight
  • environmentally friendly (can be reused)
  • average lifespan of 6.5 years
  • keeps jobsite clean and clutter-free
  • safe up to recommended capcity in ideal conditions
