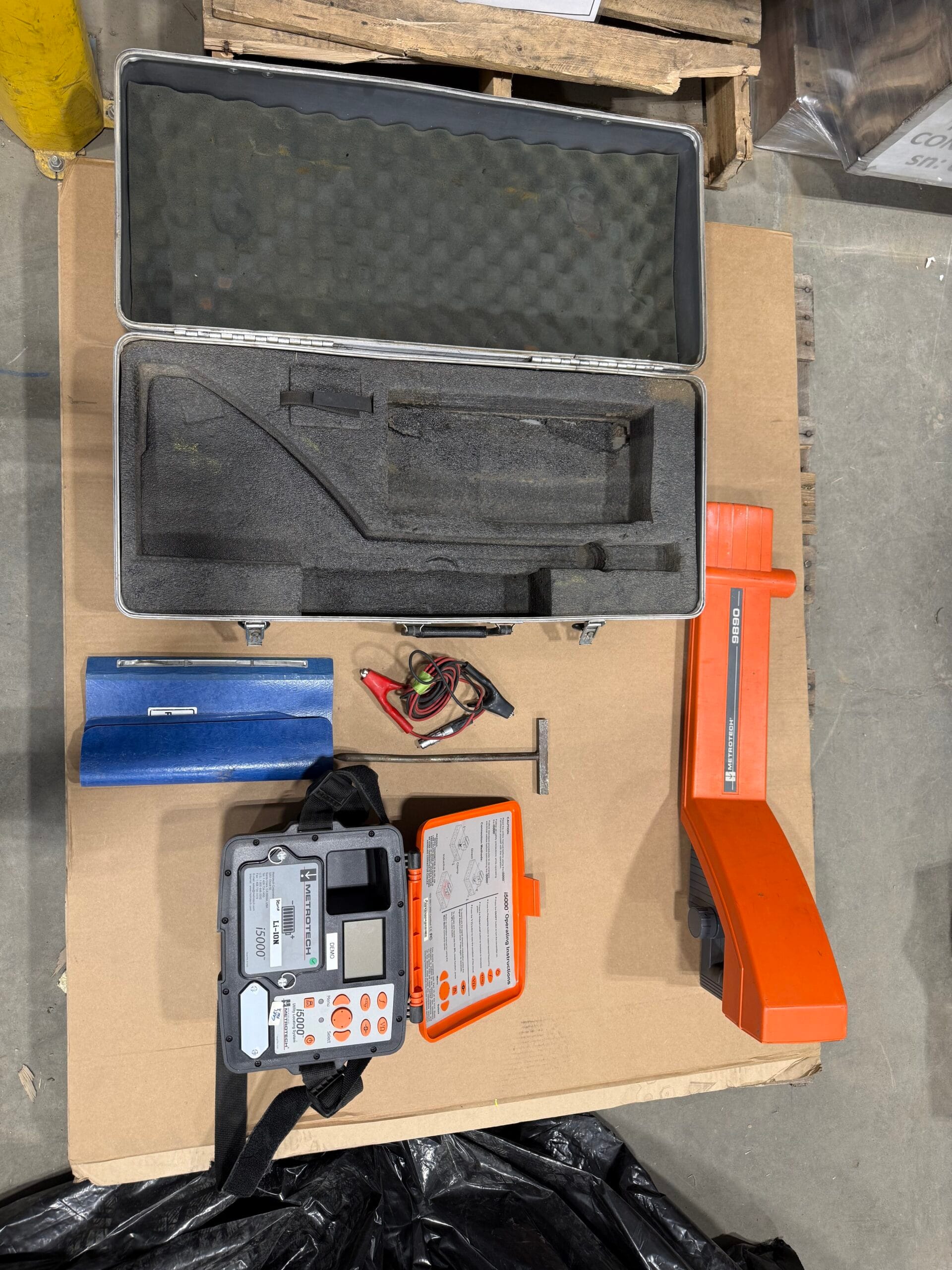

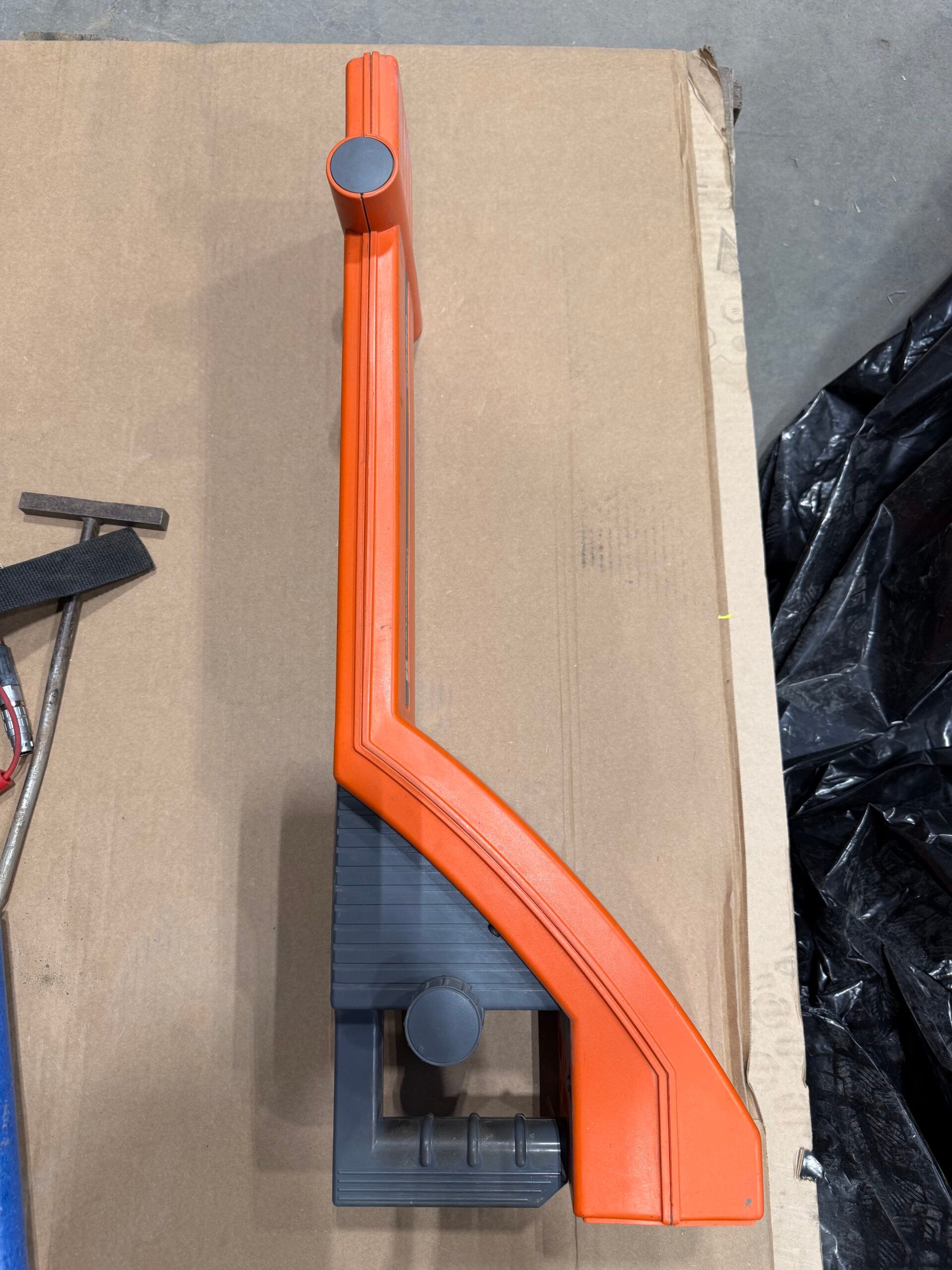

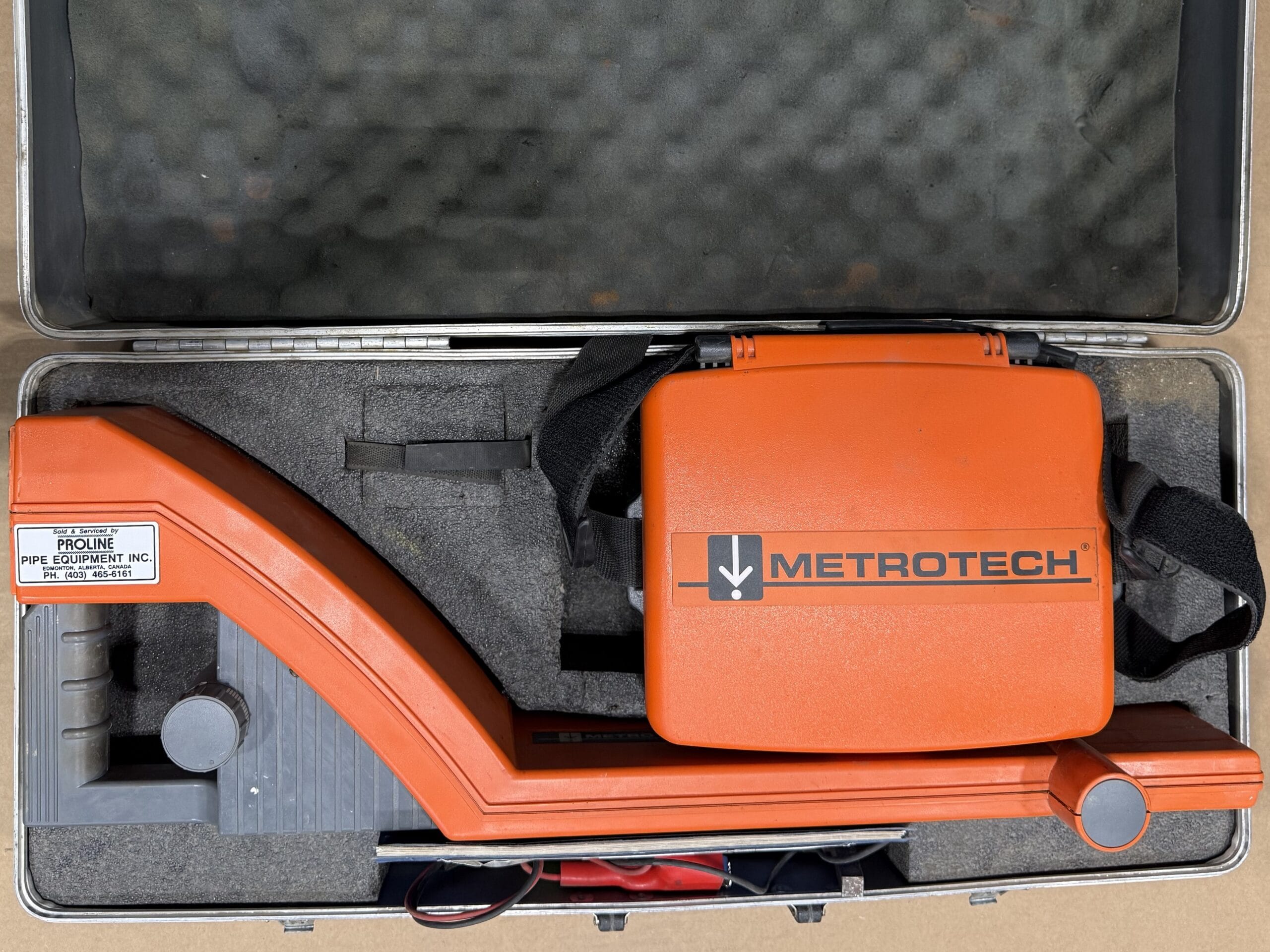

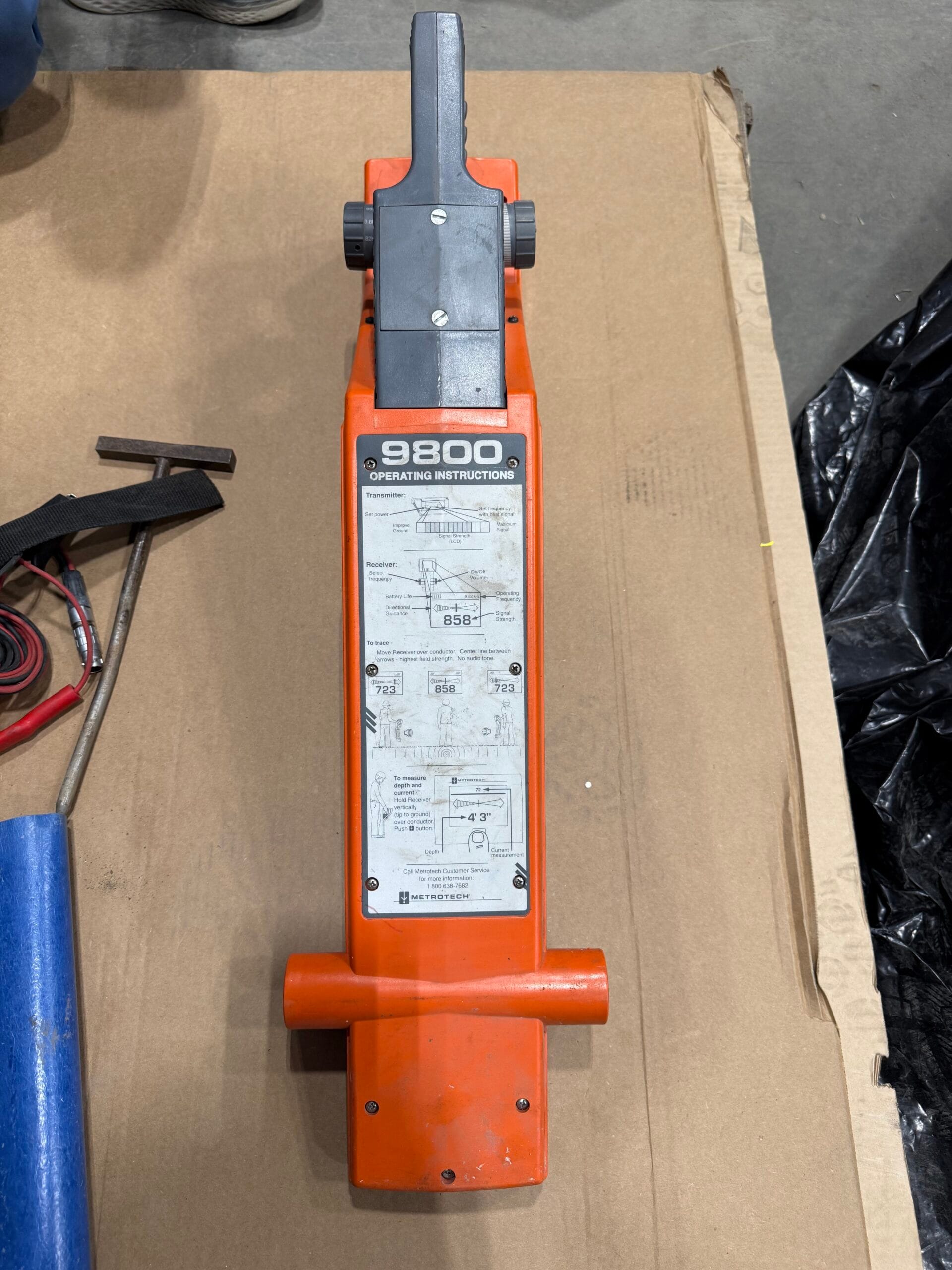

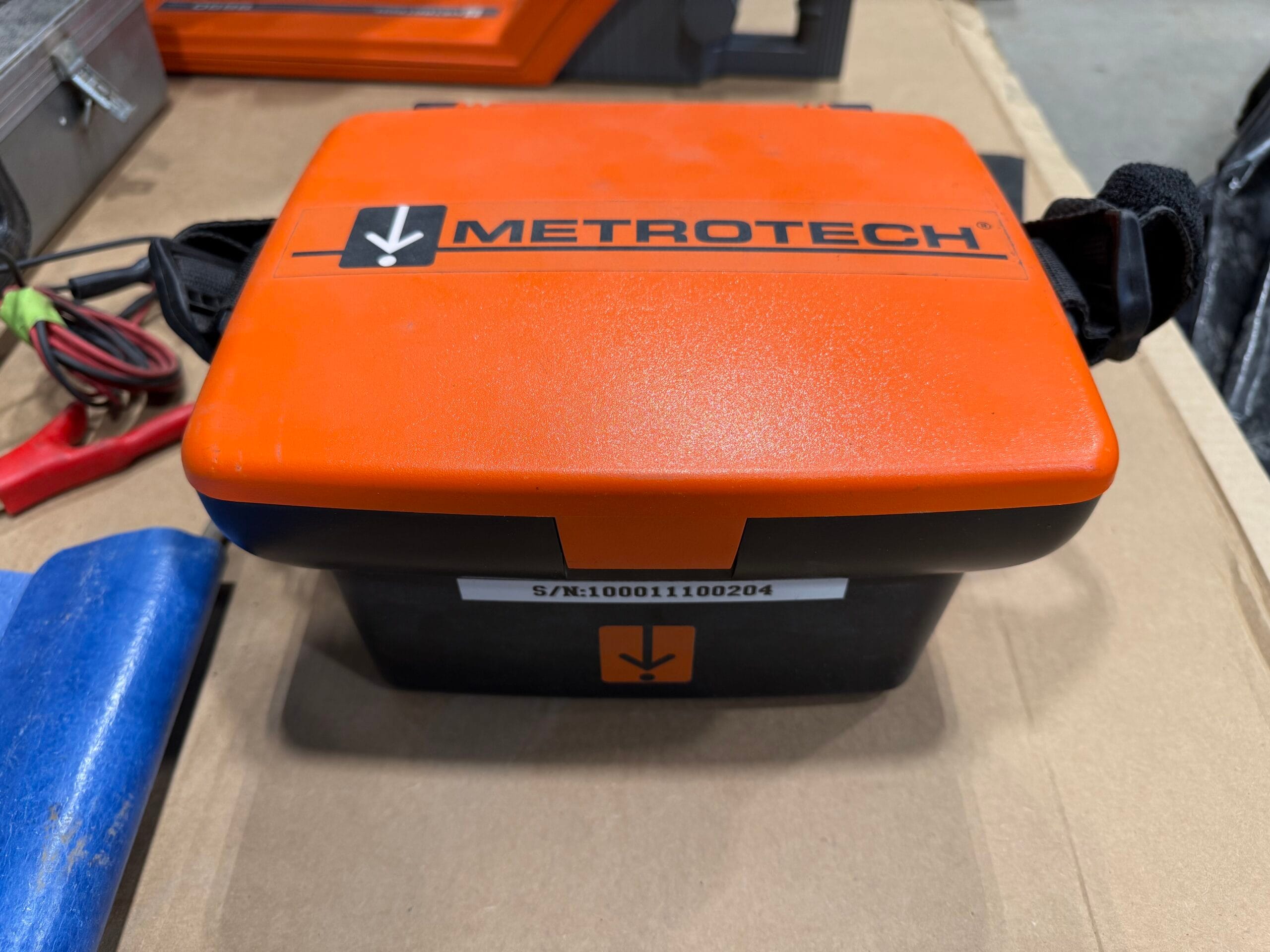

Metrotech 9890 Locator S/N: 1527A
*Used Product*
The Metrotech 9890 is a legacy, industrial-grade utility line and sheath fault locating system manufactured by Vivax-Metrotech. Highly regarded by utility professionals for its ruggedness and simplified user interface, it is primarily engineered to trace underground pipes, cables, and fiber-optic tracer wires, as well as isolate electrical faults.
- Operating Frequencies:
- Active Modes: 982 Hz, 9.8 kHz, and 82 kHz.
- Passive Modes: 50/60 Hz (power line tracking) and 14–22 kHz (radio frequency tracking).
- Fault Locating: 4.8 Hz (used in tandem with an A-frame for sheath fault pinpointing).
- Real-Time Continuous Gain Adjustment: Automatically manages signal amplification to keep tracking smooth, while still allowing the operator to switch to manual control when complex line isolation is needed.
- Distance-Sensitive Guidance: Features left/right visual guidance on a backlit LCD alongside an audio tone to lead the user directly over the centerline of the targeted utility.
- Push-Button Depth & Current Measurement: Allows operators to calculate the depth of the conductor instantly and evaluate current measurements to distinguish the target utility from adjacent utilities carrying bleed-over signals.
- Environmental Protection: Designed with an IP54-rated mechanical enclosure, making it resistant to dust and water splashes on rugged job sites.
