In pipeline construction and maintenance, flanges play a critical role in connecting pipes, valves, and equipment. These joints must be aligned with precision to ensure safe, efficient, and reliable operations. Even the smallest misalignment can cause gasket failure, leaks, or pressure loss that leads to costly downtime and safety risks. That’s why having access to the right flange alignment tools is essential for any pipeline project.

At Proline Pipe Equipment, we understand the challenges faced in the field. Our flange alignment tools are designed to help operators work faster, safer, and with greater accuracy—ensuring your systems stay up and running without interruption.

Why Flange Alignment Matters

Flanges are connection points where pipelines are most vulnerable. A misaligned flange doesn’t just slow down your project—it can compromise the integrity of the entire system. Some of the most common issues caused by flange misalignment include:

  • Gasket Failure – Uneven surfaces prevent gaskets from sealing correctly, allowing fluids or gases to escape.

  • Leaks and Pressure Loss – Escaping contents put production at risk and can cause environmental hazards.

  • Equipment Damage – Uneven loads and stress accelerate wear and tear on bolts, gaskets, and other components.

  • Increased Downtime – Correcting misalignment after installation takes more time and resources than addressing it properly during assembly.

Proper alignment ensures even load distribution across the flange face, reduces stress on joints, and increases the lifespan of the pipeline system.

Common Challenges in Flange Alignment

Aligning flanges in the field can be easier said than done. Operators often face challenges such as:

  • Heavy Equipment – Large pipes and components are difficult to maneuver manually.

  • Environmental Factors – Vibrations, temperature changes, and corrosion can shift or worsen alignment over time.

  • Limited Space – Confined work areas make it hard to adjust flanges with precision.

  • Safety Concerns – Attempting to realign flanges without the right tools can put workers at risk of injury.

These challenges highlight the need for reliable, purpose-built flange alignment tools.

Essential Flange Alignment Tools

Pipeline professionals rely on several specialized tools to achieve precise alignment:

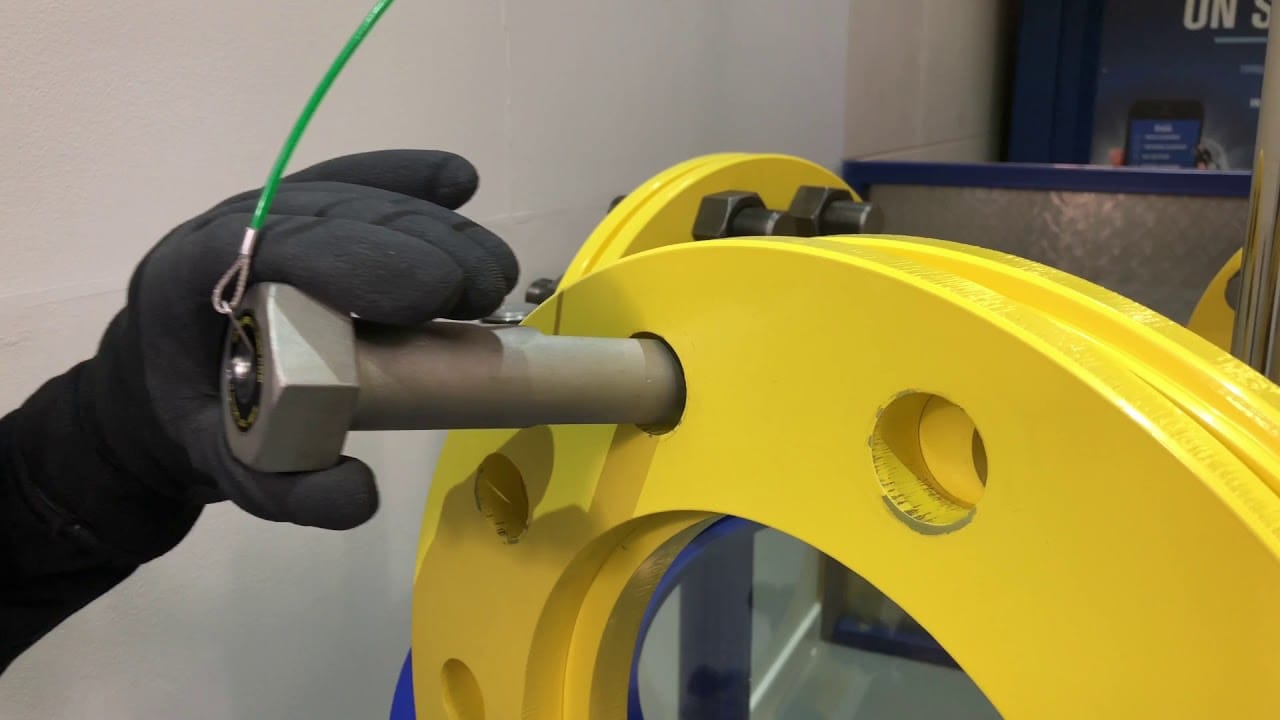

Flange Alignment Pins

Designed for small but critical adjustments, alignment pins help operators line up bolt holes and flange faces with ease. They are especially useful when dealing with minor shifts or corrections and help ensure that gaskets sit properly for a secure seal.

Flange Alignment Jacks

When flanges are significantly out of position, alignment jacks apply controlled force to bring them into alignment. These tools are essential for high-pressure systems and heavy-duty projects where manual adjustments are not enough.

Torque Wrenches

Proper bolt torque is vital for maintaining flange alignment and preventing leaks. Torque wrenches ensure bolts are tightened to the correct specifications, avoiding overstressing and ensuring even load distribution.

Hydraulic Tensioners

For larger pipelines and high-torque applications, hydraulic tensioners provide precise control and evenly distribute stress. This prevents misalignment during assembly and ensures long-term reliability in demanding environments.

Benefits of Using Professional Alignment Tools

Investing in the right flange alignment equipment provides major advantages, including:

  • Improved Safety – Reduces the risk of accidents caused by improper handling or makeshift alignment methods.

  • Faster Installation and Maintenance – Specialized tools save valuable time in the field.

  • Reduced Downtime – Prevents costly shutdowns caused by leaks or misaligned joints.

  • Extended Equipment Life – Ensures components perform longer by avoiding uneven stress and premature wear.

  • Greater Reliability – Keeps critical systems running smoothly in oil, gas, and industrial applications.

Dependable Flange Alignment Solutions at Proline

At Proline Pipe Equipment, we provide a wide selection of flange alignment tools built to perform in the toughest conditions. Backed by decades of industry experience, our knowledgeable team is here to help you select the right tools for your project. From alignment pins and jacks to torque wrenches and hydraulic tensioners, we have the equipment you need to keep your pipeline systems safe, efficient, and dependable.

Explore our full range of flange alignment solutions today and keep your projects on the right track with Proline Pipe Equipment.
