Proline Pipe Bending Machine Model BM2036

Pipe Bending Machine Model: BM20-36HD

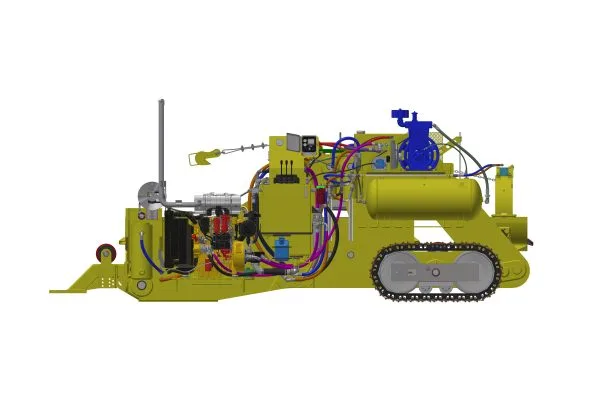

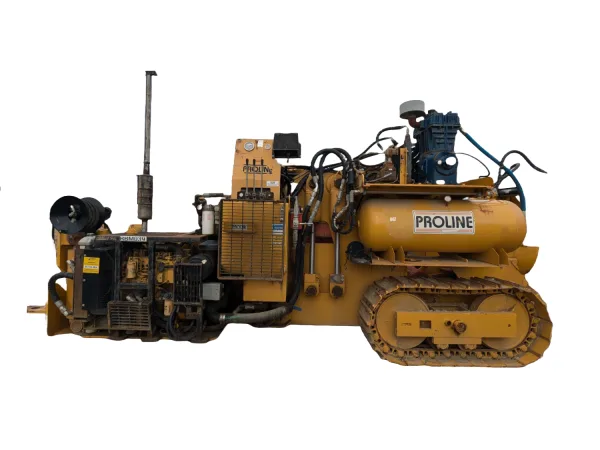

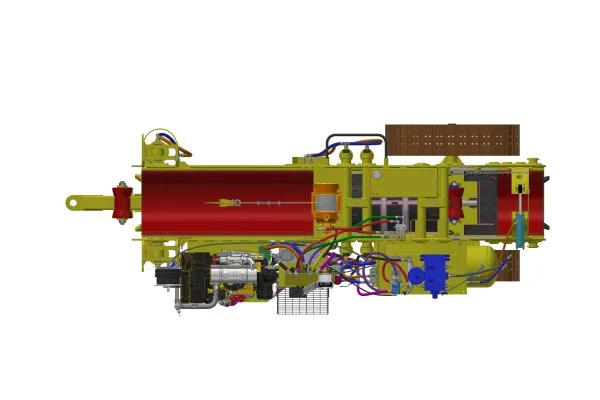

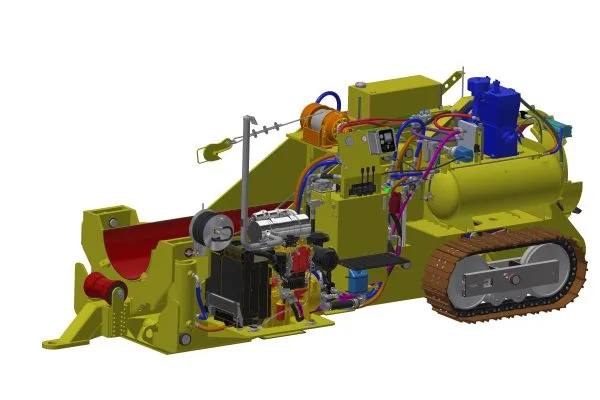

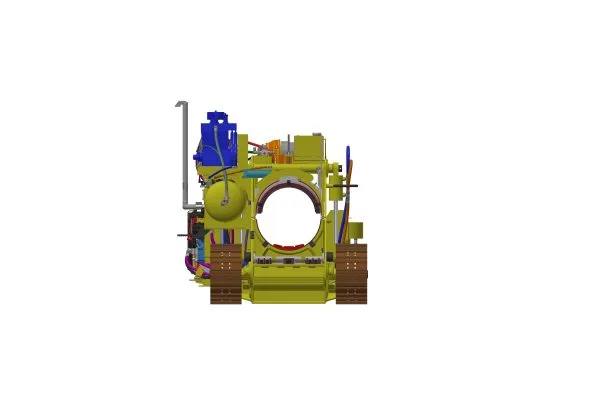

The Proline Pipe Bending Machine Model BM20-36 is a versatile and powerful tool designed for precision bending of pipes ranging from NPS 20 to NPS 36.

This machine is engineered for durability and efficiency, ensuring reliable performance even under heavy workloads. The BM20-36 is also equipped with two heavy-duty tractor style wide pad tracks, making it easy to transport and maneuver on job sites, offering convenience without compromising on capability.

Working Temperature: -49°F to 122°F / -45°C to 50°C
Undercarriage: Two heavy-duty tractor style wide pad tracks

Engine Model Type: Caterpillar 3054, 4 cylinder DIT Turbocharged Diesel
Power: 107 HP/80 kW @ 2,200 rpm
Electrical System: 12 Volt Electric Start
Maintenance Free Battery: Yes

Hydraulic System
Maximum Operating Pressure: 3,500 psi
Pump: Denison Hydraulic Drive
Flow at 2100 RPM: 64 US Gallons per Min / 242 Liters per Min
Outboard Cylinders: Two 11″ x 18″
Inboard Cylinders: Two 7″ x 5″

Hydraulic Drive Winch: Pullmaster M12
Line Pull: 12,000 lbs / 5,448 kg
Length of Cable: 100 feet / 30.5 meters
Diameter of Cable: 5/8 inch / 15.9 mm

Compressor Model: Quincy QR25-390
Maximum psi: 250
Flow at 175 psi: 69.21 CFM/FAD
Air Tank Capacity: 120 US gallon / 450 litre

Length: 23 feet 3 inches / 7.32 meters
Width: 8 feet 6 inches / 2.59 meters
Height: 9 feet 3 inches / 2.82 meters
Weight: 44,500 lbs / 20,200 kg

BM20-36 Brochure

Bending Capabilities
