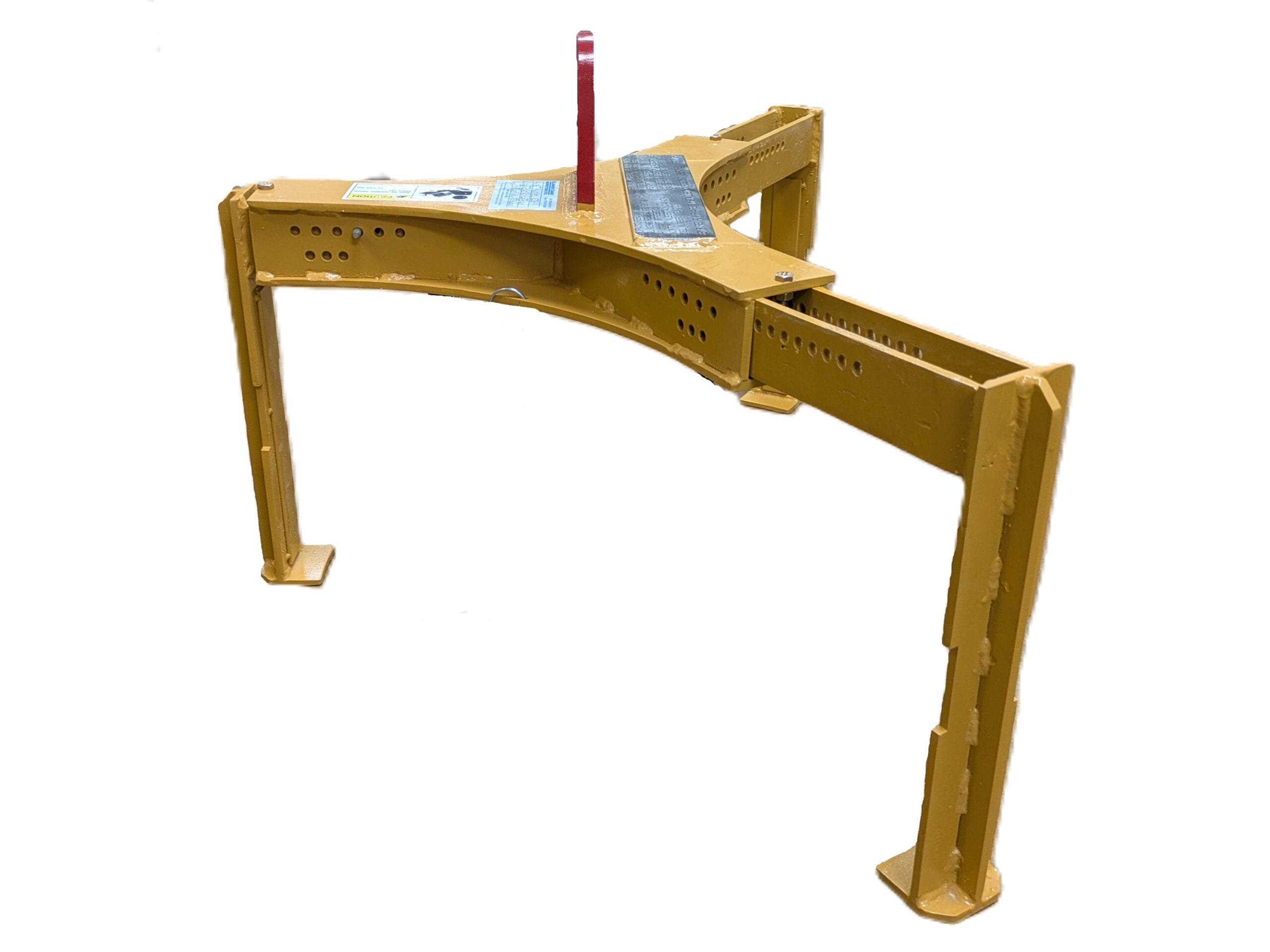

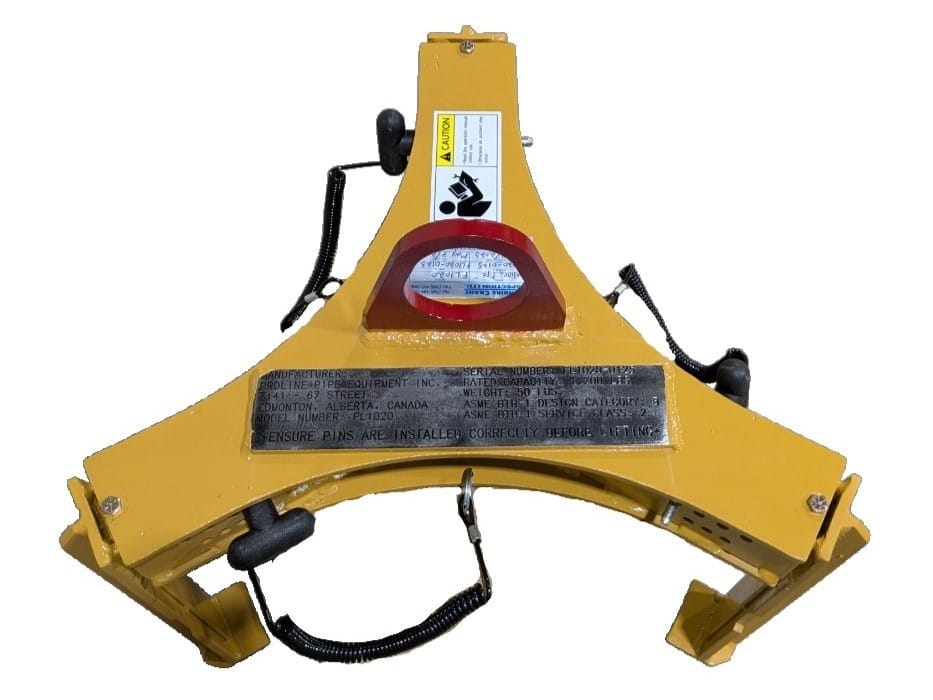

FL1020 Flange Lifter

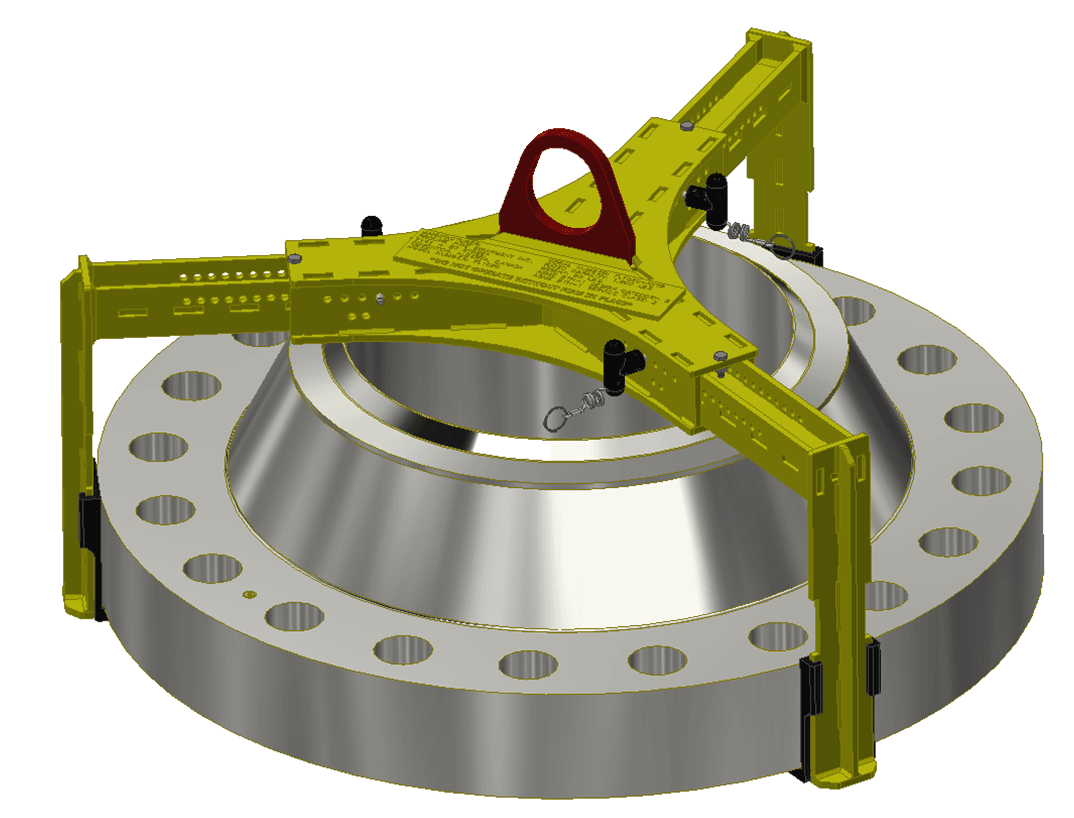

The Flange Lifter is a lightweight, high-capacity lifting solution designed specifically for the safe and efficient handling of large pipe flanges in the axial direction. Engineered for performance and portability, this tool simplifies the task of aligning and positioning heavy flanges during installation or maintenance.
Whether you’re lifting flanges for pipeline construction, plant maintenance, or industrial installation, the Flange Lifter offers a reliable and efficient solution with built-in protection and precision.

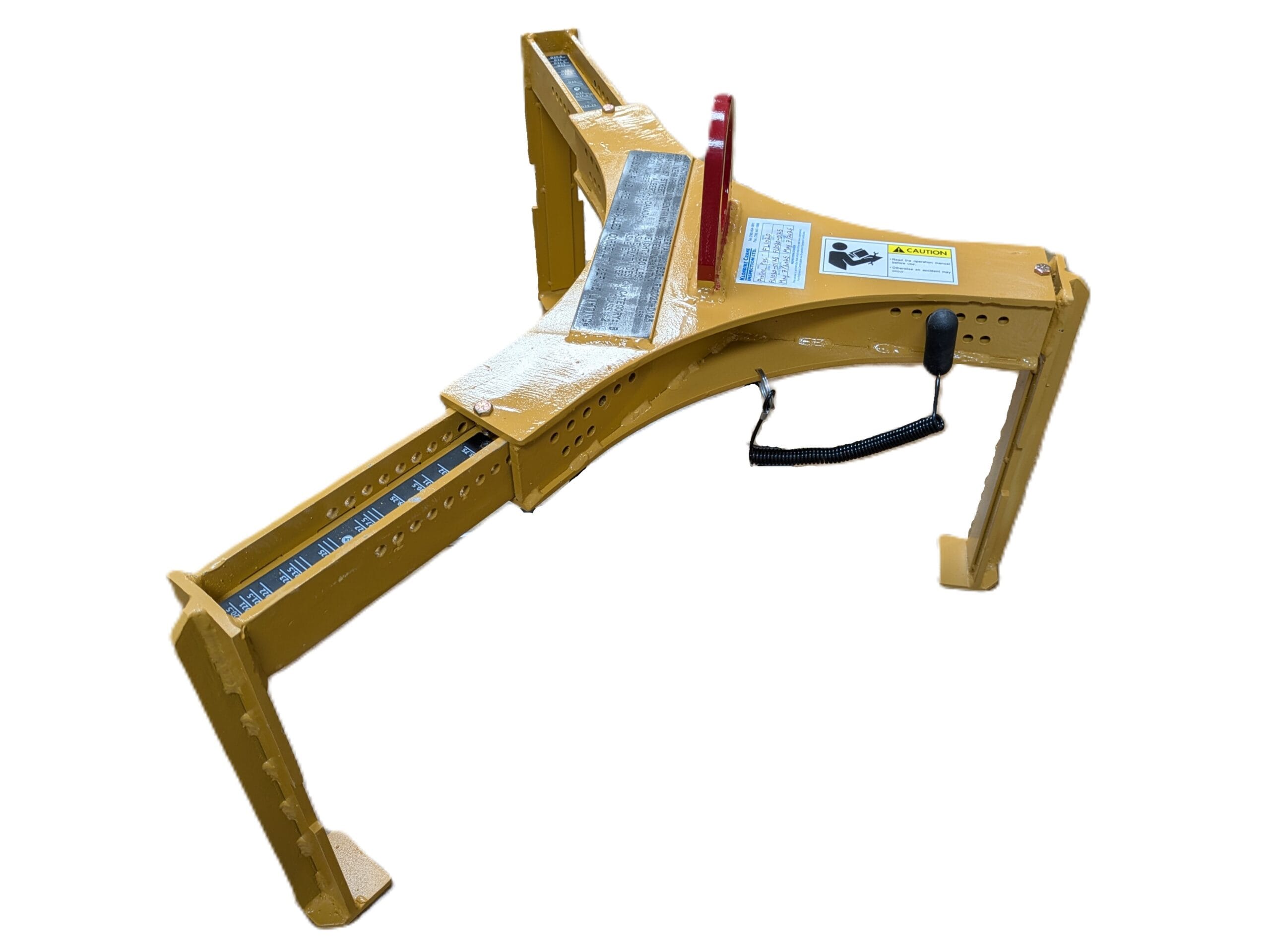

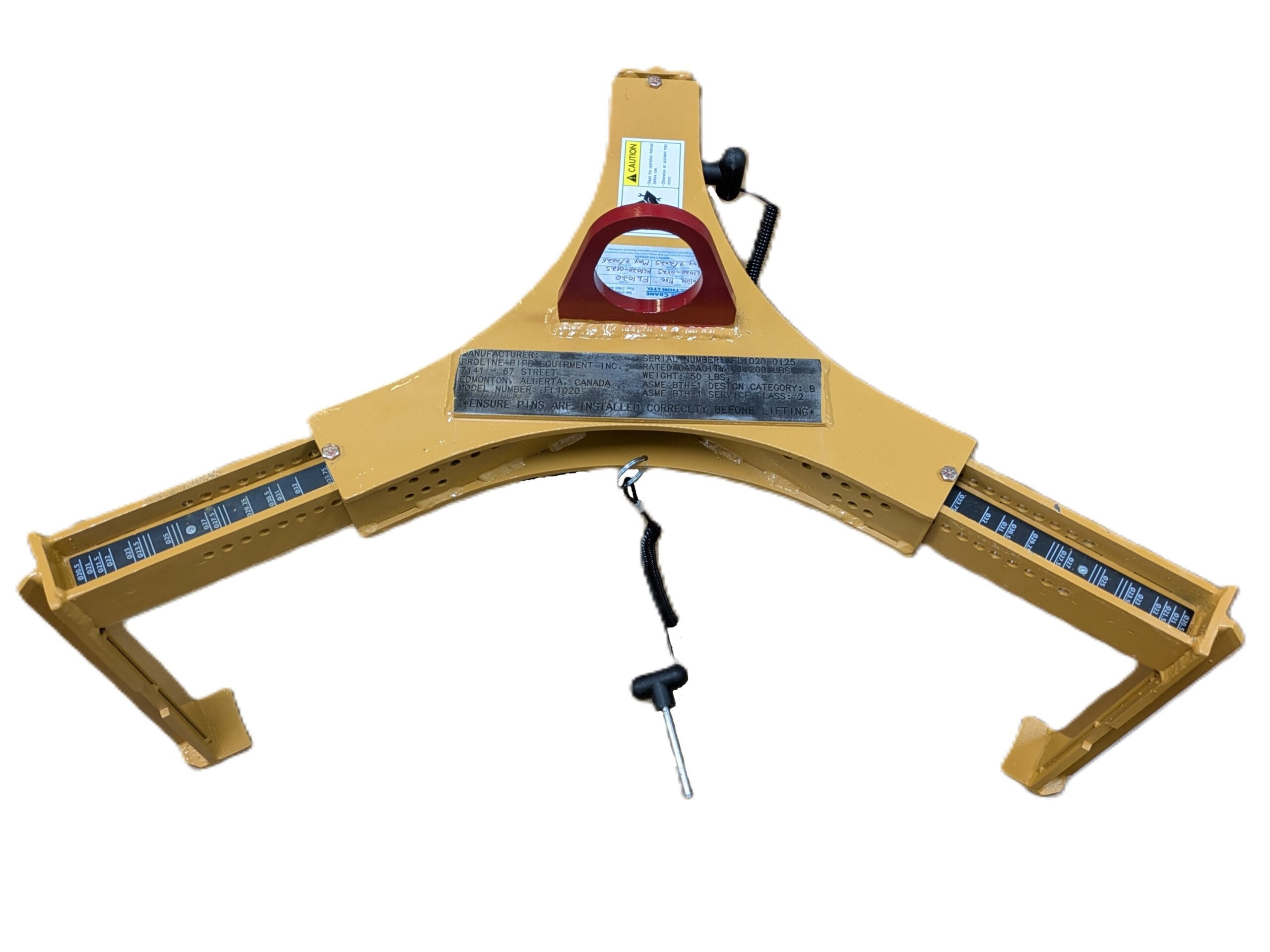

Easy Sliding Telescopic Arms: Quickly adjust to accommodate various flange sizes without tools.
Quick Release Pins: Streamline setup and teardown, saving time on the job site.
Removable Nylon Wear Pads: Provide a secure grip while protecting flange surfaces from damage.
Lightweight Design: Weighs only 48 lbs, making it easy to transport and handle without heavy equipment.

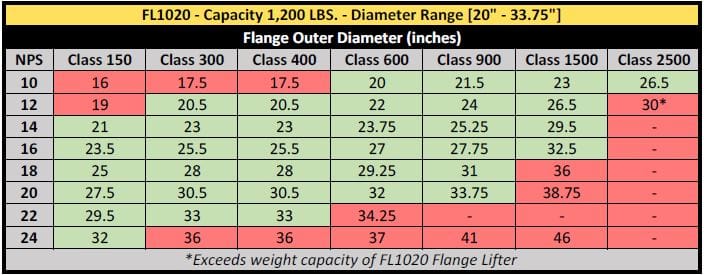

Flange Diameter Range: Ø20” (NPS 10, Class 600) to Ø33.75” (NPS 20, Class 900)
Maximum Load Capacity: 1,200 lbs
Compliance: Meets ASME B30.20 and BTH-1 standards for below-the-hook lifting devices

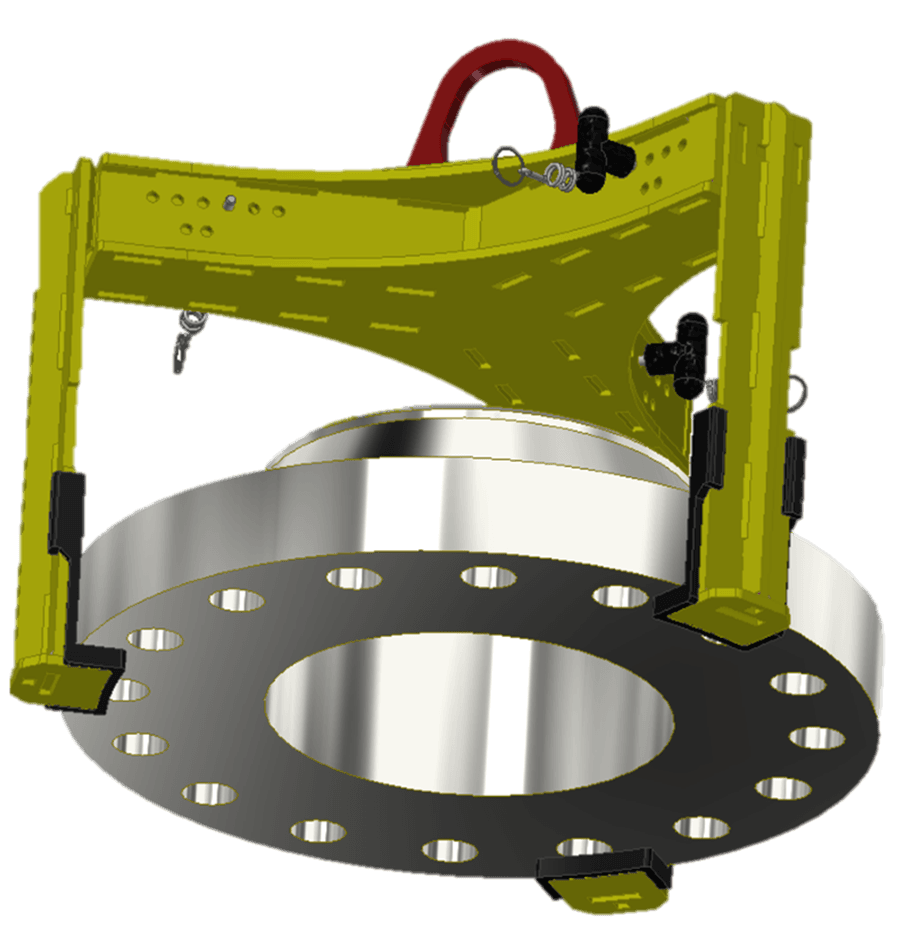

Application: Designed exclusively for lifting flanges in the axial direction—ideal for vertical installations or controlled lowering.
